Siemens TIA Portal

Overview

SDA supports automated backups for PLCs for the following Siemens TIA Portal versions:

• TIA Portal v15.1

• TIA Portal v16

• TIA Portal v17

• TIA Portal v18

• TIA Portal v19

• TIA Portal v20

If there is a missing TIA version, please feel free to get in touch with us. We will provide you with the requested version as soon as possible.

Requirements

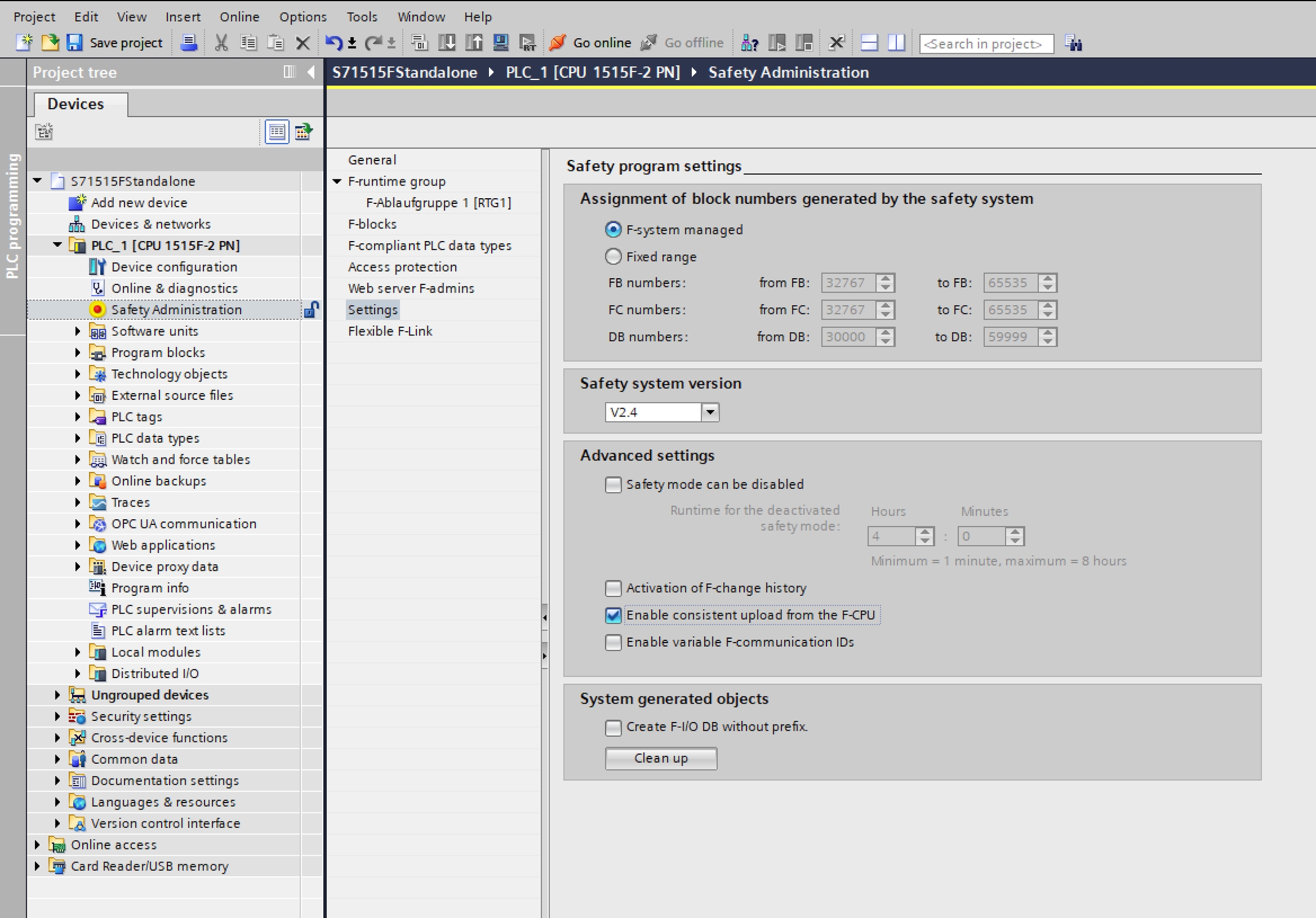

In order to make a backup for safety PLCs (F-CPUs), the consistent upload needs to be enabled

(Safety Administration / Settings / Advanced Settings - Enable consistent upload from the F-CPU):

PLC features and requirements

PLC Feature	Requirement	Supported TIA Versions
Backup from S7-1200 CPU	Firmware ≥ 4.0	V15.1 up to latest
Backup from S7-1500 CPU	Firmware ≥ 2.1	V15.1 up to latest
Certificate Handling and Secure Communication with a S7-1500(F) CPU	Firmware ≥ 2.9	V17 up to latest
Upload of Spare Part S7-1500(F) CPU with New Article Number	-	V15.1 up to latest
Reading online fingerprint data from S7-1200 and S7-1500(F) CPUs for quick station compare before upload	-	V16 up to latest

Network features

Network Feature	Supported TIA Versions
Direct network connection between PG/PC and CPU	V15.1 up to latest
Direct network connection between PG/PC and CM/CP of the CPU	V15.1 up to latest
Network connection between PG/PC and CPU via router with IP- or DNAT-Routing	V15.1 up to latest
Network connection between PG/PC and CM/CP of CPU via router with IP- or DNAT-Routing	V17 up to latest
