CODESYS

Overview

SDA supports Automated Backups for following CODESYS applications:

  • CODESYS 3.5 SP11 Patch 6

  • CODESYS 3.5 SP16 Patch 3

  • CODESYS 3.5 SP17 Patch 2

  • CODESYS 3.5 SP18 Patch 2

  • CODESYS 3.5 SP18 Patch 5

  • CODESYS 3.5 SP19 Patch 2

  • CODESYS 3.5 SP20 Patch 5

  • CODESYS 3.5 SP21

If there is a missing CODESYS version or patch level, please feel free to get in touch with us. We will provide you with the requested version as soon as possible (usually 1-2 days).

Requirements

In order to make a CODESYS project backup, the project must be configured to do a source download every time a change is deployed to the device.

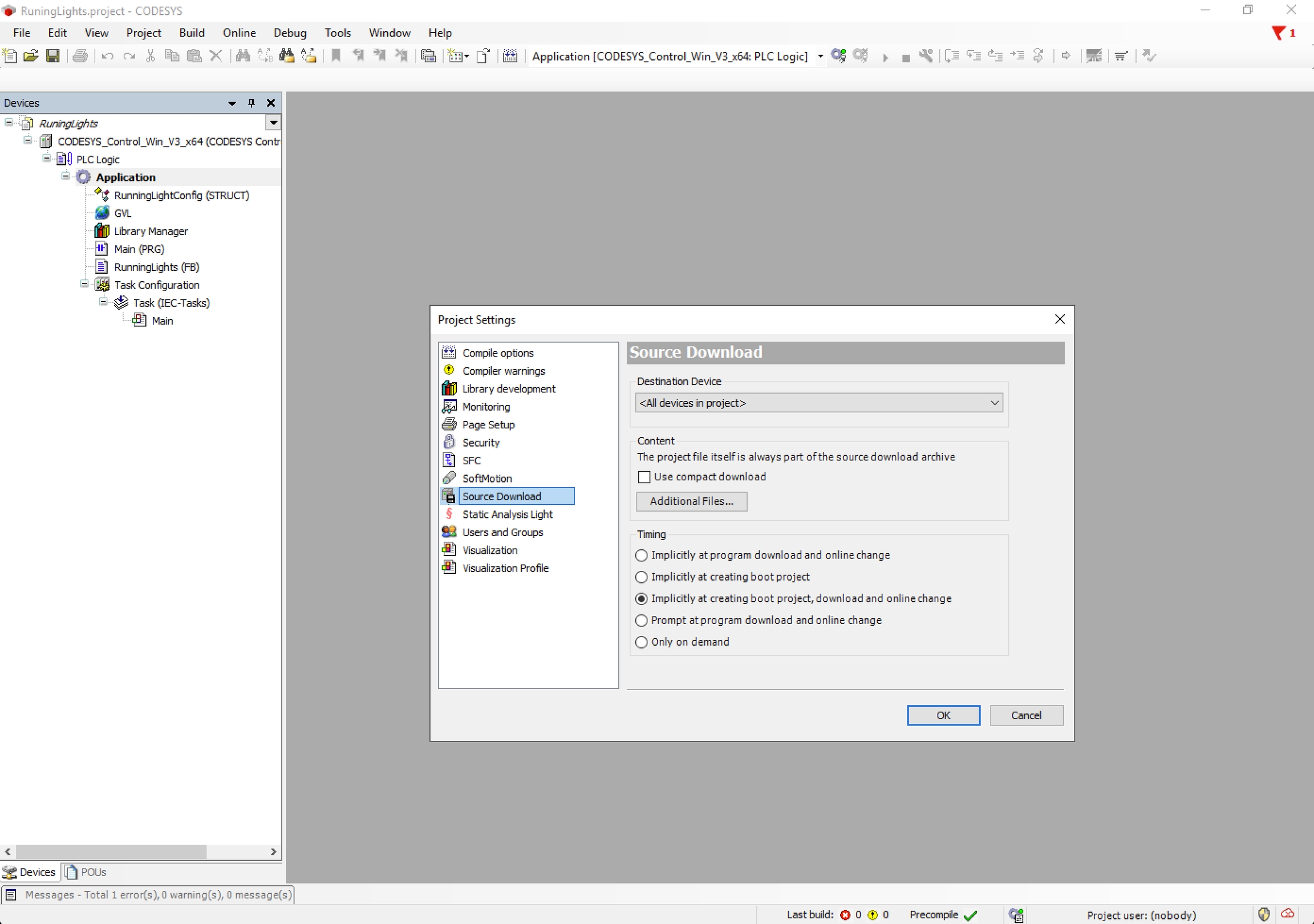

In the project settings you can define, that the project sources should be download to the device on every change ⇒ Implicitly at creating boot project, download and online change

Library and Device management

For CODESYS IDEs we are automatically managing already installed libraries and devices in tenant specific repositories. This allows us to open projects, which are using libraries and devices, much faster after the first session.

The library and device repositories are separated for each tenant, so that no other tenant user can access your own libraries.
